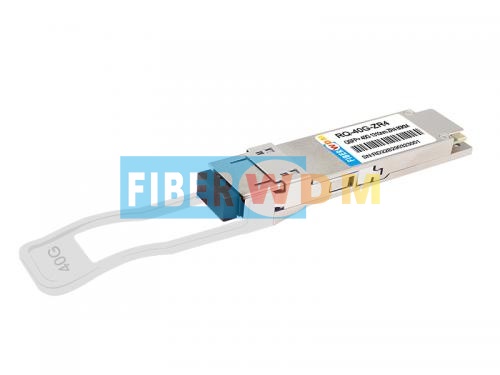

Features 4 lanes MUX/DEMUX design Integrated LAN WDM TOSA / ROSA Up to 11.2Gbps per channel bandwidth Aggregate bandwidth of > 40Gbps Duplex LC connector Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ZR4 QSFP MSA compliant APD photo-detector Up to 80 km transmission Compliant with QDR/DDR Infiniband data rates Single +3.3V power supply operating Built-in digital diagnostic functions Temperature range 0°C to 70°C Applications Rack to rack Data centers Switches and Routers Metro networks Switches and Routers 40G BASE-ZR4

产品特性: 最大支持16*100G客户侧接入，8*200G和4*400G线路侧传输，实现双向1.6Tbps（总容量3.2Tbps)的业务传输容量。设备可堆叠，后期可将传输容量扩展到双纤(单波200G*96波@50GHz)或(单波400G*64波@75GHz或 单波400G*48波@100Ghz) 1U机箱模块化设计，单板采用热插拔设计，支持平滑升级，根据需求可以灵活扩充或删减业务。 支持双电源1+1热备份，交流AC110V~260V或直流电源DC-48V，满足数据中心机房的服务器机架要求。 具有完备的网络管理协议:支持主流各种接口:WEB,SNMP,CLI，TLI等多种网管接口。 支持双网管卡，1+1管网功能 支持网管协议定制开发:可根据客户需要，灵活定制各种网管

1.25G SFP optical transceiver module, support 1.25Gb/s 200 km transmission, It works in high-speed IDC connection solutions, network switch, PTN, OTN and so on. Features: Up to 1.25Gb/s Data Links Hot-Pluggable Duplex LC connector Up to200km on9/125μmSMF 1550nmCOOLED DFBlaser transmitter APD Receiver Single +3.3V Power Supply Monitoring Interface Compliant with SFF-8472 Maximum Power<1.5W Operating temperature range: Commercial: 0°C to 70°C, Industrial: -40°C to +85°C RoHS compliant and Lead Free Applications: Metro/Access Networks 1.25 Gb/s 1000Base-EZX Ethernet 1×Fibre Channel Other Optical Links

1.25G SFP optical transceiver module, support 1.25Gb/s and up to 150 km transmission Features: Up to 1.25Gb/s Data Links Hot-Pluggable Duplex LC connector Up to 150km on 9/125μm SMF 1270~1610nm CWDM DFB laser transmitter APD Receiver Single +3.3V Power Supply Monitoring Interface Compliant with SFF-8472 Maximum Power <1W Commercial operating temperature range: -0°C to 70°C Version available RoHS compliant and Lead Free Applications: Metro/Access Networks 1.25 Gb/s 1000Base-EZX Ethernet 1×Fibre Channel Other Optical Links

1.25G SFP optical transceiver module, support 1.25Gb/s and up to 200 km transmission Features: Up to 1.25Gb/s Data Links Hot-Pluggable Duplex LC connector Up to 200km on 9/125μm SMF 1270~1610nm CWDM DFB laser transmitter APD Receiver Single +3.3V Power Supply Monitoring Interface Compliant with SFF-8472 Maximum Power <1W Commercial operating temperature range: -0°C to 70°C Version available RoHS compliant and Lead Free Applications: Metro/Access Networks 1.25 Gb/s 1000Base-EZX Ethernet 1×Fibre Channel Other Optical Links

1.25G SFP optical transceiver module, support 1.25Gb/s and up to 180 km transmission Features: Hot-Pluggable Duplex LC connector Up to 1.25Gb/s data rate 100GHz ITU Grid, C Band DWDM COOLED DFB transmitter, APD photo-detector SMF links up to 180km 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface Power Supply :+3.3V Power consumption<1.5W Temperature Range: 0~ 70°C RoHS compliant Applications: 1G Fibre channel DWDM Networks Fibre channel

RQ-40G-ER4+ 40Gb/s ER4+ 60km QSFP+ Transceiver Hot Pluggable, Duplex LC Connector, Single mode Features: 4 CWDM lanes MUX/DEMUX design Up to 11.2Gbps per channel bandwidth Aggregate bandwidth of > 40Gbps Duplex LC connector Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ER4+ QSFP MSA compliant APD photo-detector Up to 60 km transmission Compliant with QDR/DDR InfiniBand data rates Single +3.3V power supply operating Built-in digital diagnostic functions Temperature range 0°C to 70°C RoHS Compliant Part Applications: Rack to rack Data centers Switches and Routers Metro networks Switches and Routers 40G BASE-ER4+

Features: Up to 155Mb/s Data Links Hot-Pluggable Duplex LC connector Up to 120km on 9/125μm SMF 1270nm～1610nm CWDM DFB laser transmitter Single +3.3V Power Supply Monitoring Interface Compliant with SFF-8472 Maximum Power <1W Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available RoHS compliant and Lead Free Applications: SONET OC-3/SDH STM-1 Fast Ethernet Other Optical Links
