  • 100G QSFP SR4
    100G QSFP28 SR4 100m 850nm MPO Optical Transceiver
    100G QSFP28 SR4 100m 850nm MPO Optical Transceiver,support 100Gb/s and up to 100m transmission on MM fiber, it works in high-speed IDC connection solutions and so on. Features Compliant with IEEE Std 802.3bm Compliant with SFF-8665 Transmission data rate up to 25 .78125GbpsData rate per channel High Reliability 850nm VCSEL technology Electrically hot-pluggable Single +3 .3V power supply Case temperature range: 0 ~ +70℃ Maximum power consumption 2 .5W Single MPO12 connector RoHS complaint
  • 100G QSFP28 CWDM4
    100G QSFP28 CWDM4 2km LC Optical Transceiver
    100G QSFP28 CWDM4 optical transceiver module, support 100Gb/s and up to 2 km transmission on SM fiber, it works in high-speed IDC connection solutions, and so on.
  • 100G QSFP28 LR4
    100G QSFP28 LR4 1310nm 10km LC Optical Transceiver
    100G QSFP28 LR4 optical transceiver module, support 100Gb/s and up to 10 km transmission on SM fiber, it works in high-speed IDC connection solutions, and so on. Features 4 lanes MUX/DEMUX design Integrated LAN WDM TOSA / ROSA for up to 10 km reach over SMF Support 100GBASE-ER4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps Aggregate bandwidth of >100Gbps Duplex LC connectors Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard· Single +3.3V power supply operating Built-in digital diagnostic functions Temperature range 0°C to 70°C RoHS Compliant Part Support FEC(Forward Error Correction)
  • 100G QSFP28 ER4
    100Gb QSFP28 ER4 40Km 1310nm LC Optical Transceiver
    100G QSFP28 ER4 optical transceiver module, support 100Gb/s and up to 40 km transmission on SM fiber, it works in high-speed IDC connection solutions, and so on. Features: 4 lanes MUX/DEMUX design Support 100GBASE-ER4 for line rate of 103.125Gbps. Integrated LAN WDM TOSA / ROSA for up to 40 km reach over SMF. Aggregate bandwidth of >100Gbps Duplex LC connectors Compliant withIEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module  electrical standard ITU-T G.959.1-2012-02 standard· Single +3.3V power supply operating Built-in digital diagnostic functions Temperature range 0°C to 70°C RoHS Compliant Part Support FEC(Forward Error Correction)
  • 100G QSFP28 ZR4
    100Gb QSFP28 ZR4 80Km 1310nm LC Optical Transceiver
    100G QSFP28 ZR4 optical transceiver module, support 100Gb/s and up to 80 km transmission on SM fiber, it works in high-speed IDC connection solutions, and so on. Features 4 lanes MUX/DEMUX design Support 100GBASE-ZR4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81GbpsLANWDM EML laser and PIN receiver with SOA Aggregate bandwidth of >100Gbps Duplex LC connectors Compliant withIEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module  electrical standard ITU-T G.959.1-2012-02 standard· Single +3.3V power supply operating Built-in digital diagnostic functions Temperature range 0°C to 70°C RoHS Compliant Part Support FEC(Forward Error Correction)
  • 100G QSFP28 AOC cable
    100G QSFP28 AOC Transceiver
    Up to 27.952Gbps Data rate per channel Max link up to 100M on OM3 cable, and 150m on OM4 cable. High reliability 850nm VCSEL technology Electrically hot-pluggable Low power consumption Low EMI design
  • 100G QSFP28 DOC cable
    100G QSFP28 DAC Transceiver
    QSFP28 MSA, Up to 4x 25Gb/s, 100G DAC cable High reliability 850nm VCSEL technology Electrically hot-pluggable Low power consumption Low EMI design
  • QSFP28 100G 转4X25G SFP28 OTU 业务板

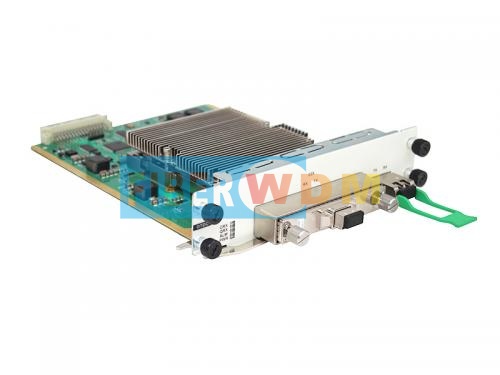

    QSFP28 100G 转4X25G SFP28 OTU 业务板
    支持100G<=> 4X25G DWDM传输 单板卡支持1路103.125Gbit/s~111.81Gbit/s双向业务接入。 支持多种客户侧业务接入:100GBASE-SR4/CWDN4/LR4/PSM4。 支持自动关闭发送功能。 业务透明传输。 支持热拔插。 支持FEC功能,可优化输出、DDM信号监视、链路侦测(无接收光时不发光)。 支持基于SNMP统一网管平台,网管方式CLl(telnet及console)、Web、NetView(图形化界面)。
