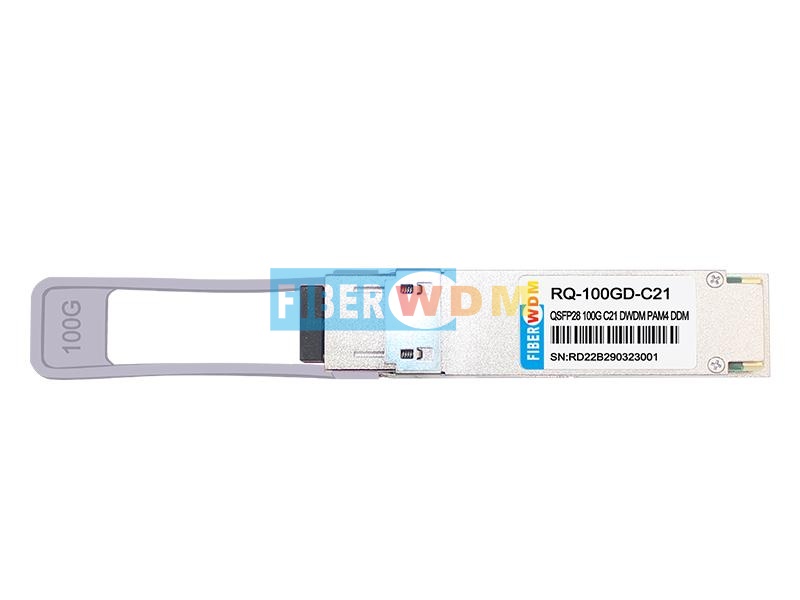

100Gb/s QSFP28 DWDM PAM4 Dual LC Transceiver

100G QSFP28 DWDM optical transceiver module, support 48*100Gb/s DWDM System and up to 80 km transmission on SM fiber, it works in high-speed IDC connection solutions.

现在查询下载

类别

热门产品

产品详细信息

100G QSFP28 DWDM PAM4 LC QSFP28 DWDM Transceiver

The RQ-100GD-CXX series QSFP28 100G DWDM PAM4 LC QSFP28 DWDM Transceiver module is designed for use in duplex optical data communications. This module is designed for single mode optical fiber and operates at a data rate of 100Gbps at the nominal DWDM wavelength from 1528.77nm to 1565.50nm as specified by the ITU-T. This module can convert 4 channels of 25Gbps (NRZ) electrical input data to 1 channel of 100Gbps (PAM4) optical signal, and also can convert 1 channel of 100Gbps (PAM4) optical signal to 4 channels of 25Gbps (NRZ) electrical output data. The electrical interface of the module is compliant with the OIF CEI-28G-VSR and QSFP28 MSA. It is designed to deploy in the DWDM networking equipment in metropolitan access and core

networks.

Features

Supports 100Gbps
Available in all C-Band Wavelengths on the
100GHz DWDM ITU Grid
Single 3.3V Power Supply
Power Dissipation < 5.5W
80km reach over SMF with EDFA&DCM (dispersion compensation modules)
QSFP28 MSA Compliant

SFF-8636 Rev 2.10a Compliant
4x25G Electrical Interface
LC Duplex Connector
Commercial Case Temperature Range of 0°C to 70°C
I2C Interface with Integrated Digital
Diagnostic Monitoring
Safety Certification: TUV/UL/FDA*1 RoHS Compliant

Ordering Information

Part No	Data Rate	Package	Center Wavelength (nm)	Tx	Rx	Distance	Interface	Temp.
RQ-100GD-C21	100G	QSFP28	1560.61	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C22	100G	QSFP28	1559.79	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C23	100G	QSFP28	1558.98	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C24	100G	QSFP28	1558.17	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C25	100G	QSFP28	1557.36	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C26	100G	QSFP28	1556.55	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C27	100G	QSFP28	1555.75	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C28	100G	QSFP28	1554.94	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C29	100G	QSFP28	1554.13	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C30	100G	QSFP28	1553.33	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C31	100G	QSFP28	1552.52	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C32	100G	QSFP28	1551.72	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C33	100G	QSFP28	1550.92	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C34	100G	QSFP28	1550.12	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C35	100G	QSFP28	1549.32	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C36	100G	QSFP28	1548.51	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C37	100G	QSFP28	1547.72	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C38	100G	QSFP28	1546.92	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C39	100G	QSFP28	1546.12	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C40	100G	QSFP28	1545.32	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C41	100G	QSFP28	1544.53	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C42	100G	QSFP28	1543.73	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C43	100G	QSFP28	1542.94	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C44	100G	QSFP28	1542.14	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C45	100G	QSFP28	1541.35	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C46	100G	QSFP28	1540.56	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C47	100G	QSFP28	1539.77	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C48	100G	QSFP28	1538.98	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C49	100G	QSFP28	1538.19	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C50	100G	QSFP28	1537.40	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C51	100G	QSFP28	1536.61	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C52	100G	QSFP28	1535.82	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C53	100G	QSFP28	1535.04	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C54	100G	QSFP28	1534.25	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C55	100G	QSFP28	1533.47	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C56	100G	QSFP28	1532.68	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C57	100G	QSFP28	1531.90	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C58	100G	QSFP28	1531.12	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C59	100G	QSFP28	1530.33	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-100GD-C60	100G	QSFP28	1529.55	-7~4dB	<-12.5 dBm @BER 4E-3	80km (with DCM and EDFA	LC	0°C to 70°C
