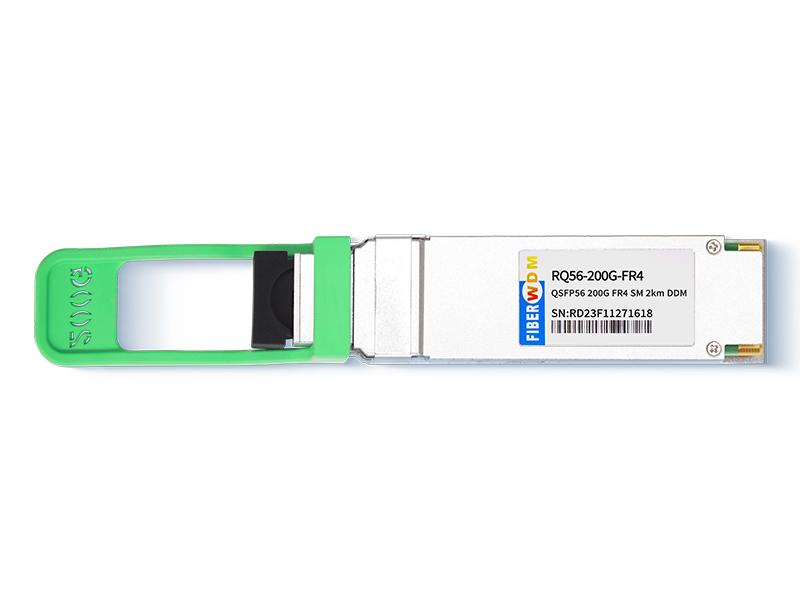

200G QSFP56 FR4 2KM LC PAM4 Optical Transceiver

Features

  • 4 duplex channels transmitters and receivers
  • Integrated CWDM LD and PD array
  • LC/UPC connecting interface compliant
  • Single +3.3V power supply
  • DDM function implemented
  • Hot-pluggable QSFP56 form factor
  • Transmission length up to 2km
  • Low power dissipation:<6.5w
  • International class 1 laser safety certified
  • Operating temperature range: 0℃ ~ +70 ℃
  • Compliant with ROHS10

Applications

  • 200GBASE-FR4 Ethernet
  • Switch & Router Connections
  • Data Centers
  • Other 200G Interconnect Requirements.

Standards

  • IEEE 802.3cd
  • CMIS Rev 4.0
  • OIF-CEI-04.0 56G-VSR-PAM4
  • IEEE 802.3bs Annex120E
  • SFF-8024 Rev. 4.6
  • SFF-8679 Rev1.8
  • SFF-8665 Rev1.9
现在查询 下载
  • 产品详细信息

RQ56-200G-FR4

200G QSFP56 FR4 2KM LC Optical Transceiver


 200G QSFP56


The 200G QSFP56 FR4 Transceiver is designed to transmit and receive optical data links 50 Gb/s bit rate per channel with PAM4 modulation format via up to 2km single mode fiber. It is hot pluggable transceiver with QSFP56 package. The module comprises high performance LD PIN DSP etc.


Specifications

(Tested under recommended operating conditions, unless otherwise noted)

Parameter

Symbol

Unit

Min

Typ

Max

Notes

Transmitter (per Lane)

Signaling Speed per Lane


GBd


26.5625



Modulation format




PAM4



Center wavelength

WL

nm

1264.5

1271

1277.5


1284.5

1291

1297.5


1304.5

1311

1317.5


1324.5

1331

1337.5


Side-mode suppression ratio

SMSR

dB

30




Average Launch Power per Lane

TXPx

dBm

-4.2


4.7


Tx OMA per lane

TXOMA

dBm

-1.2


4.5


Optical Extinction Ratio

ER

dB

3.5




Transmitter and dispersion    eye closure for PAM4 per Lane

TDECQ

dB



3.3


Optical return loss tolerance

ORL

dB



16.5


Relative Intensity Noise

RIN

dB/Hz



-132


Receiver (per lane)

Signaling Speed per Lane




26.5625



Center wavelength

WL

nm

1264.5

1271

1277.5


1284.5

1291

1297.5


1304.5

1311

1317.5


1324.5

1331

1337.5


Damage Threshold

DT

dBm

5.7




Average Launch Power per Lane

RXP

dBm

-8.2


4.7


Receiver reflectance

Rfl

dB



-26


Difference in receive power between any two lanes


dB



4.1


Receiver sensitivity (OMA outer)


dBm



-6


Stressed receiver sensitivity(OMA outer)


dBm



-3.6



Ordering Information

PN

Package

Data rate

Laser

Detector

Temp

Reach

Others

Application

RQ56-200G-FR4

QSFP56

200G

DFB

PIN

0~70℃

2km

RoHS

200G Base FR4


PN

RQ56-200G-FR4

Description

200G Base FR4 Transceiver -CT

SAP No

-

Customer PN

-


Absolute Maximum Ratings

Parameter

Symbol

Unit

Min

Max

Storage Temperature Range

Ts

℃

-40

+85

Relative Humidity

RH

%

5

85

Power Supply Voltage

Vcc

V

-0.5

+4.0


Recommended Operating Conditions

Parameter

Symbol

Unit

Min

Typ

Max

Operating Case Temperature Range

Tc

oC

0

/

70

Power Supply Voltage

Vcc

V

3.135

3.3

3.465

Baud Rate (Per channel)

BR

GBd


26.5625



Optical Interface

200G QSFP56


Principle diagram

200G QSFP56


Electric Ports Definition

Parameter

Symbol

Unit

Min

Typ

Max

Notes

Supply Voltage

VCC

VCC3.3-Tx

VCC3.3-Rx

V

3.135

3.3

3.465


Power Consumption

Pc

W



6.5


Transceiver Power-on Initialize Time


ms



2000


Transmitter

Differential peak-to-peak input voltage tolerance


mV

900




Differential termination mismatch


%



10


Differential input return loss(SDD11)


dB



See

CEI-56G

-VSR


Common-mode to differential conversion and differential to common-mode

conversion (SCD11,SDC11)


dB



See

CEI-56G

-VSR


Receiver

Differential peak-to-peak output voltage


mV



900


DC Common Mode Voltage

Vcm

mV

-0.35


2.85


AC Common Mode Noise, RMS


mV



17.5


Differential termination mismatch


%



10



Differential output return loss (SDD22)



dB



See

CEI-56G

-VSR


Common-mode to differential conversion and differential to common-mode

conversion (SCD22, SDC22)



dB



See

CEI-56G

-VSR









IIC communication

IIC Clock frequency

-

KHZ

/

400

1000


clock stretching

-

us

/

/

500


Data hold time

-

ns

/

/

/



Package Outline


200G QSFP56
